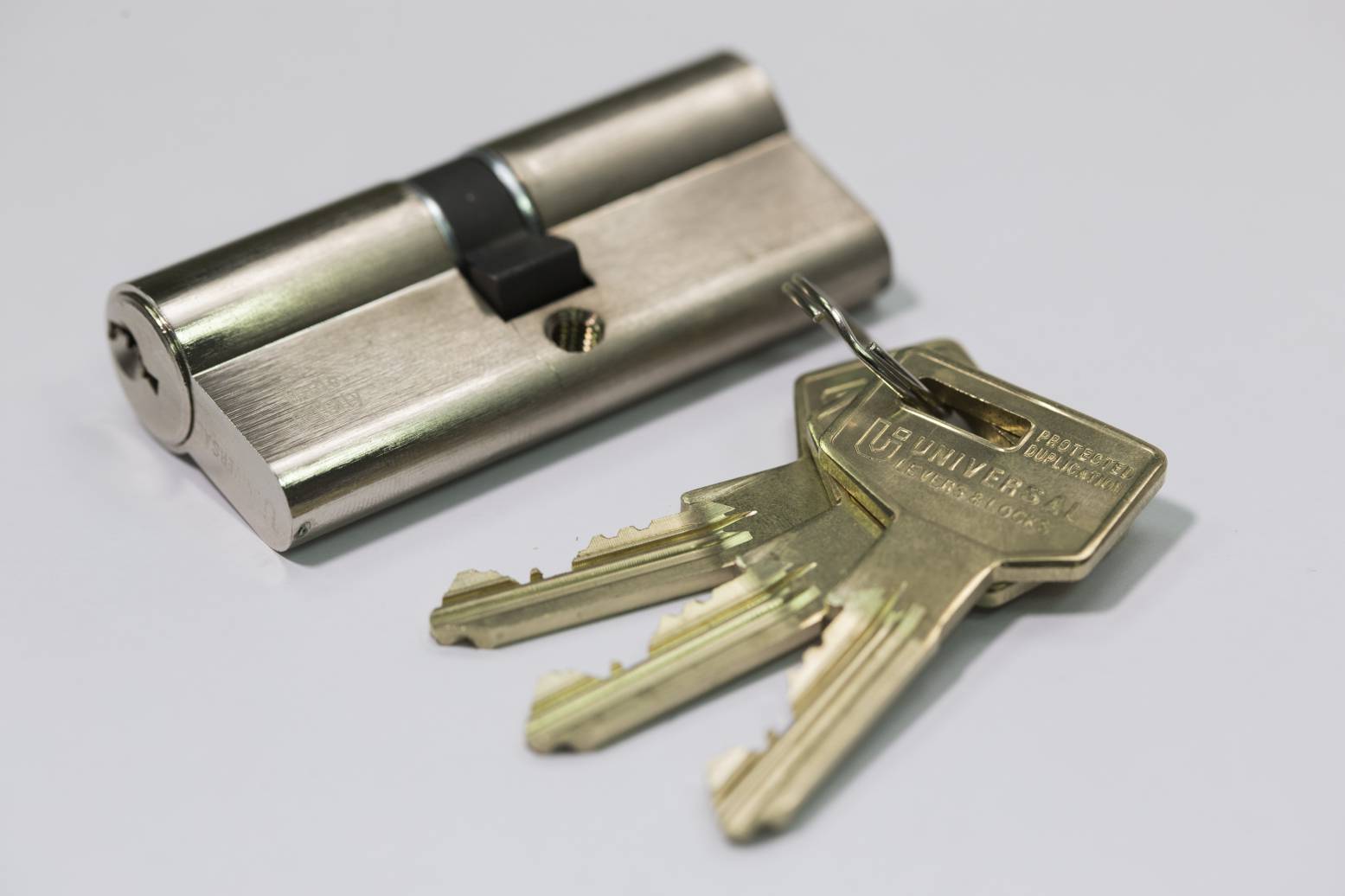

CY 402

Description

CYLINDER SECURITY

 Attack Resistance

• High resistance to “bumping” or percussion thanks to the BKP (Bump Key Power) device.
• High resistance to housebreaking technique: highly effective against wax impression burglary thanks to the BKP device and to the special configuration of the springs.
• Highly drill resistance, thanks to the hardened steel key bitting system.
• Push-resistant through the projecting cam.

KEY SECURITY

 Key Related Security

• Key protected by 3D Trade Mark for effective protection from illegal key duplication.
• Over 240.000 possible combinations or different keys.

Master Keying Potential

The 6-pin key bitting system offers outstanding access management possibilities.

RELIABILITY

Durability

• Tested for over then 100,000 cycles.

EN 1303: 2005

• Compliant with the European Standard EN 1303: 2005.

CERTIFICATIONS

• SKG**.

PATENTS

• Key blank protected by 3D Trademark no. 1 236 248 and Community Design no. 2669630

APPLICATIONS

CY400 is the product for medium-security applications ideal for apartment buildings. It offers satisfactory master keying potential for companies, shopping malls, universities, hospitals combining strong access management possibilities with control of key duplication.

TECHNICAL FEATURES

 Cylinder

• 6 pin key bitting system.
• Brass body.
• Brass plugs.
• Self-lubricating DIN sintered steel cam.
• Cemented steel pins.
• Variable shape hardened steel pin drivers.
• Phosphorous bronze and steel springs.

Key

• Paracentrical keyway.
• Nickel silver.
• Ergonomic grip head.
• Neck length 12 mm.
• Key numerical coding.
• Key thickness 2.4 mm.
• Depth 0.48 mm.

Finishes

• Standard: nickel plated brass (fi n.12).
• On request: sanded brass (fi n.00).

Standard equipment

• 3 keys. • Security Card. • Fixing screw.
